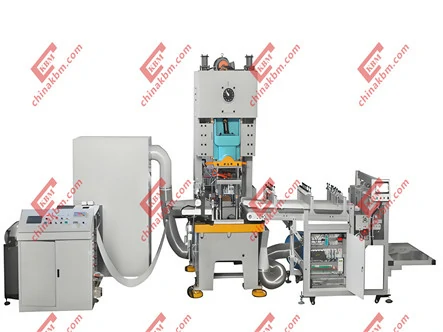

Fully Automatic 45T 2 Cavitties Aluminum Foil Lunch Box Production

Machine Model: AF-45AT

I、 Main Parameters of Machine Tool

NO.	Project Name		Units	AF-45T Parameters
1	The main structure of the machine tool
1.1	Machine Structure		——	Integral, Open-style
1.2	Drive Mode		——	Motor-gear-crankshaft Drive
1.3	Transmission Points		——	Single-point
1.4	Slide Rail Guide Rail Oriented		——	Symmetrical Six - sided Copper Guide Rail
1.5	Precision Class of Punching Machine		——	JIS JIS First Grade
2	Main technical specifications
2.1	Nomal Force		KN	450
2.2	Nominal Force Stroke		mm	3.5
2.3	Sider Stroke		mm	240(Customization)
2.4	Slider Stroke Times		Times/min	50-78(Customization)
2.5	Max.Mould Loading Height		mm	480(Customization)
2.6	Mould Loading Height Adjustment		mm	60
2.7	Depth of Throat		mm	410(Customization)
2.8	Slider Bottom Size	Left-right	mm	410
2.8	Slider Bottom Size	Front -back	mm	340
2.9	Shank Hole Size		mm	φ60X70(Customization)
2.10	Size of Table	Left-right	mm	1000(Customization)
2.10	Size of Table	Front -back	mm	800(Customization)
2.11	Table Height From Ground		mm	800
2.12	Size of Table Hole		mm	φ230(Customization)
2.13	Air Pressure		MPa	0.6
2.14	Main Motor Power		KW	7.5

II、High Precision Punch-Machine Configurations

Category	Title	Brief Description	Remark

Electrical Parts	Main Motor	SIEMENS	Germany
	Secondary-Drop Protection Device	OMRON	Japan

Sealing	O-rings / Y-rings	NAK	Taiwan
	TC Oil Seal	NAK	Taiwan
Oil-Way	Concentrated oil lubrication system	Yongjia Flowing through /Nanfang Pump	China Mainland

Pneumatic Components	Air Source Treatment, Reducing Valve	AirTac	Taiwan
	Duplex Solenoid Valve	TACO	Japan
	Automation Air Source Solenoid Valve	AirTac	Taiwan
Important Bought-in Components	Hydraulic Overload Protection Device	KingAir	Taiwan
	Clutch	Dry Pneumatic Friction Type	Japan
Machinery Parts	Machine Body & Structural Parts	FINEST

	Air Tank	FINEST
	Connecting Rod	FINEST
	Ball Bead Screw	FINEST
	Working Table	FINEST
Special Requirements	Add a pointer to the Bent Axle	FINEST
	No electricity box, Keep the motor&electric pump lead
	Punch 4-∮18 through-holes on the sliding block bottom, hole distance: 260 front and back*350 left and right

	Instruction in Chinese and English
	No need any label
	Increase one size of the balance cylinder & frequency converter

	（E6C3） Electronic CAM Model (OMRON E6C3)	Voltage			Output Type	Resolution Ratio
		□	DC12~24V		Complementary Output	□	100、□		300、□	360
		□	DC5~12V		Voltage Output	□	100、□		300、□	360
		□	DC5~12V		Linear Drive Output	□	100、□		300、□	360
III、SL750Feeder Machine Main Technical Parameter
No.				Main Item				Parameter
1				Maximum lateral adjustment of feeder				250mm
2				Maximum height adjustment of feeder				250mm
3				Maximum Unwinding Diameter				1000mm
4				Unwinding Material Maximum width				750mm
5				Feeding Length				1-9999mm
6				Feeding Speed				0-150m/min
7				Feeding Accuracy				±0.2mm
8				Working Voltage				220V/380V
9				Machine Power				3KW
10				Engine Model				ABB Inverter， Mitsubishi/ SIEMENS PLC, Delta switching power supply
11				Size of feeder（LWH)				220014001500mm
12				Size of Loader（LWH)				700930800mm
13				Total Weight				Approx485Kg

IV、 SG-2 Automatic Stacker Main Technical Parameter
No.	Main Item	Parameter
1	Conveyor Belt width	750mm
2	Receipt with The Height	900-1200mm（can be adjusted)
3	Lunch box Minimum Size	100*100mmcan be adjusted)
4	Lunch Box Maximum Size	600*350mm(1 channel)； 250＊350mm(2 channels)
5	Maximum Stacking Height	500mm ( according to the size of the lunch box)
6	The Largest Pile Number	120 pcs
7	Maximum stacking speed	50 pcs/min
8	Air Consumption	0.2m³/min(1 channel)
9	Machine Power	about 3KW
10	Engine Model	Mitsubishi PLC Weilun touch screen
11	Overal Dimension（LWH)	250013001600mm （2channels)
12	Automatic collection of products; automatically stacking
